EES Series Energy Storage High-Voltage Connector

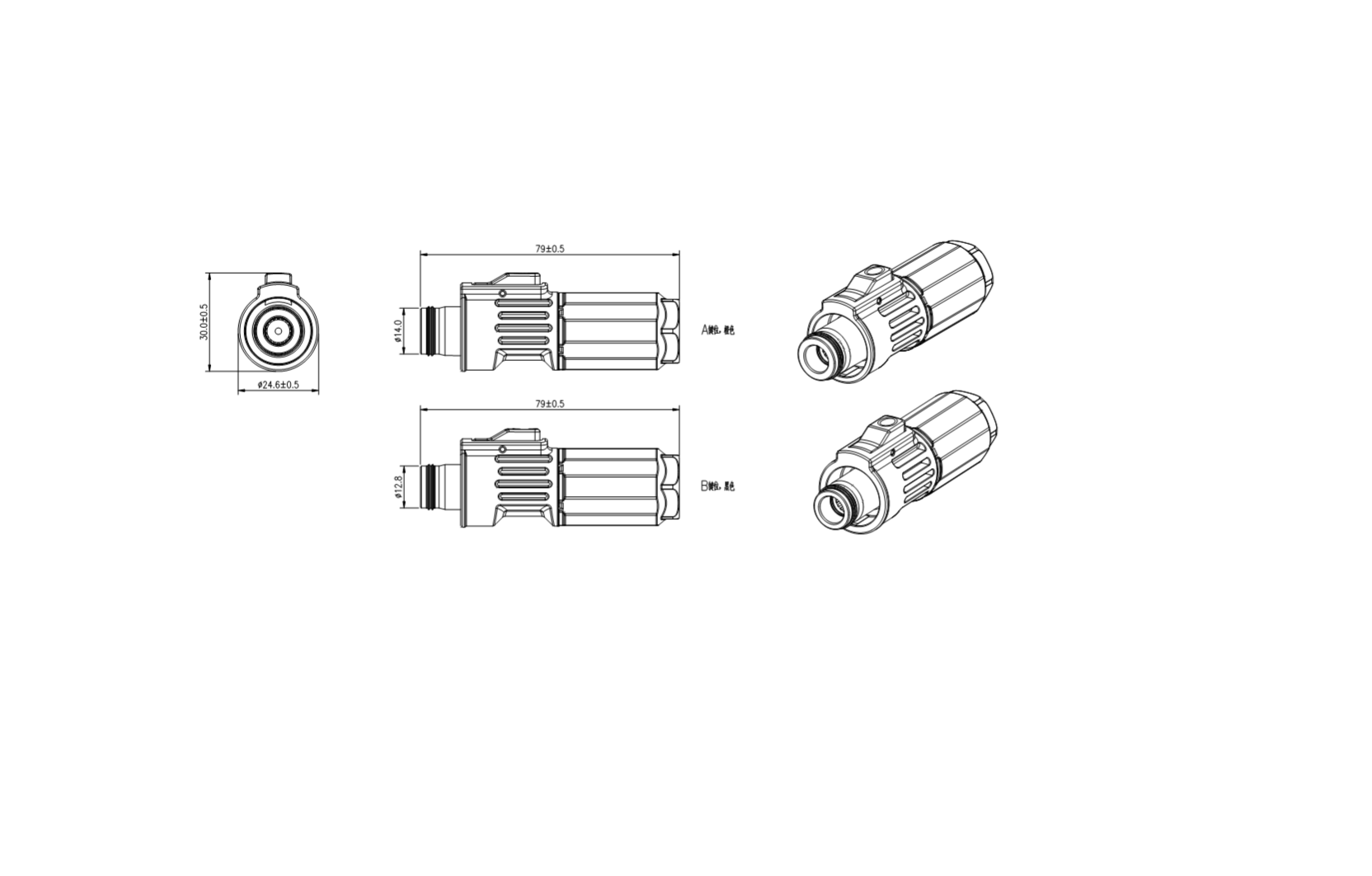

EES 10.3mm / 8mm / 6mm Connector
The EES Series Energy Storage High-Voltage Connector is specially designed for the energy storage market. It offers a high-current, quick-connect solution with superior safety and space-saving advantages. This product effectively addresses the high installation and maintenance costs associated with traditional terminals and busbars, making it the preferred option for next-generation energy storage systems.
Quantity:
Contact Now
add to cart

EES Series Energy Storage High-Voltage Connector

Company Profile

DONGGUAN NOIMIA INDUSTRIAL CO., LTD. is a professional precision component manufacturing enterprise solely owned (or controlled) by a natural person, Specializing in the research, development, manufacturing, and sales of connector contact terminals, contact pins, female pin with torsion spring, copper bar, bushings, automotive hardware parts, medical equipment accessories, and power tool output shaft. It has developed an integrated industrial model that spans from product development and precision manufacturing to market sales.

Product Overview

The EES Series Energy Storage High-Voltage Connector is specially designed for the energy storage market. It offers a high-current, quick-connect solution with superior safety and space-saving advantages. This product effectively addresses the high installation and maintenance costs associated with traditional terminals and busbars, making it the preferred option for next-generation energy storage systems.

Technical Specifications

Item

Specification

Operating Life

≥ 500 cycles

Mating/Unmating Force

< 100 N

Wire Range

16–95 mm² (6 AWG – 4/0 AWG)

Rated Current

80–350 A

Rated Voltage

1500 V DC

Dielectric Strength

TUV 4260 VAC / UL 6800 VAC

Insulation Resistance

≥ 200 MΩ (DC1500V)

Protection Level

IP67

Operating Temperature

-40°C to +125°C

Contact Material

Copper alloy, silver plated

Housing Material

PA66

Flammability Rating

UL94V-0

Key Features

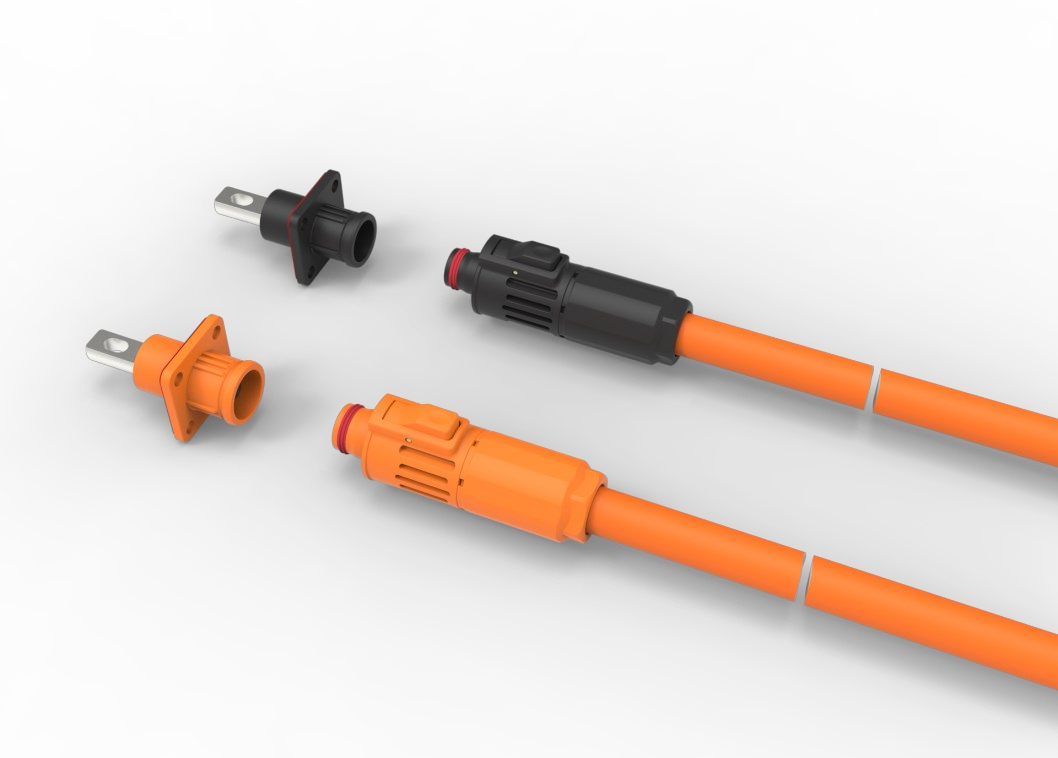

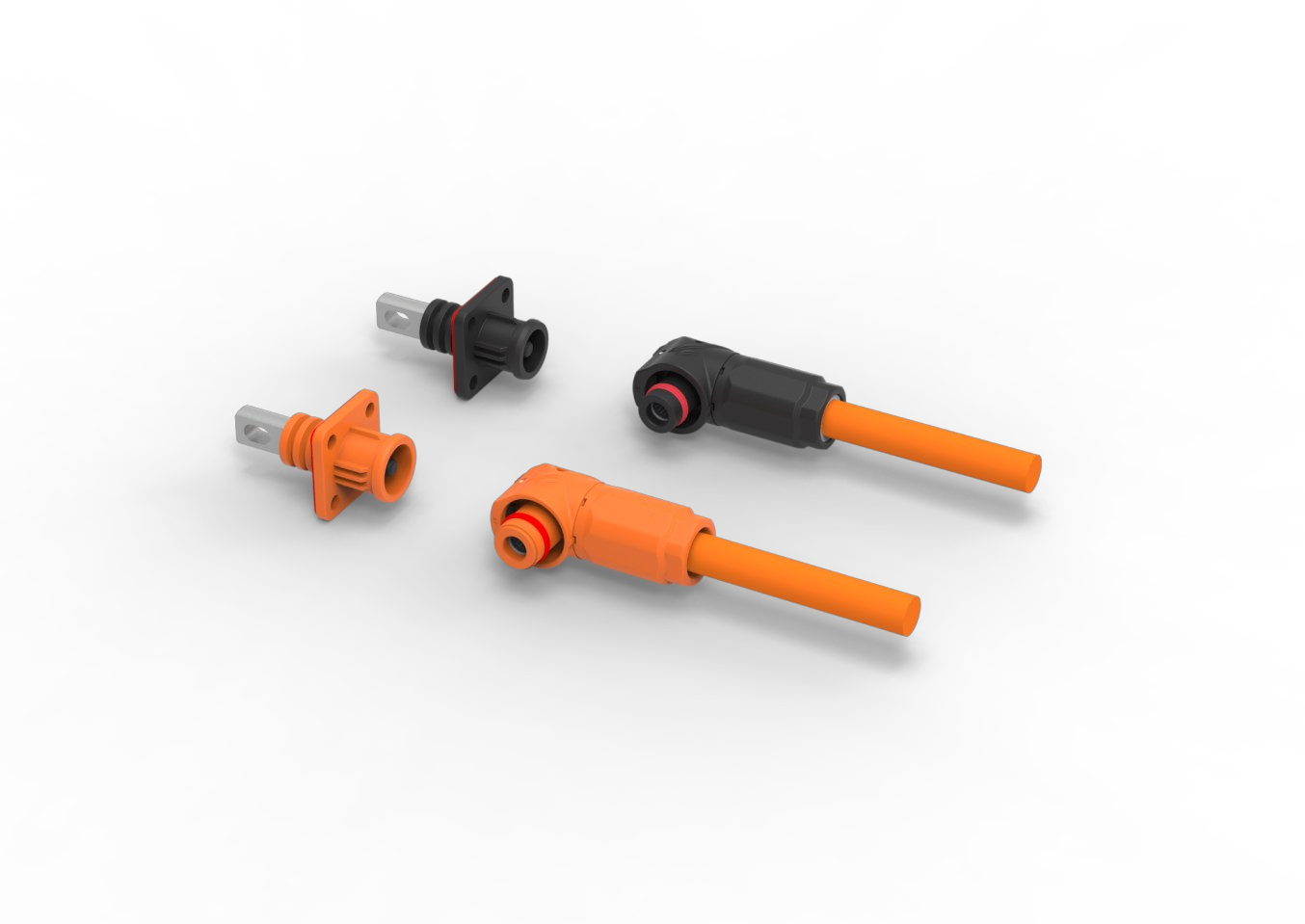

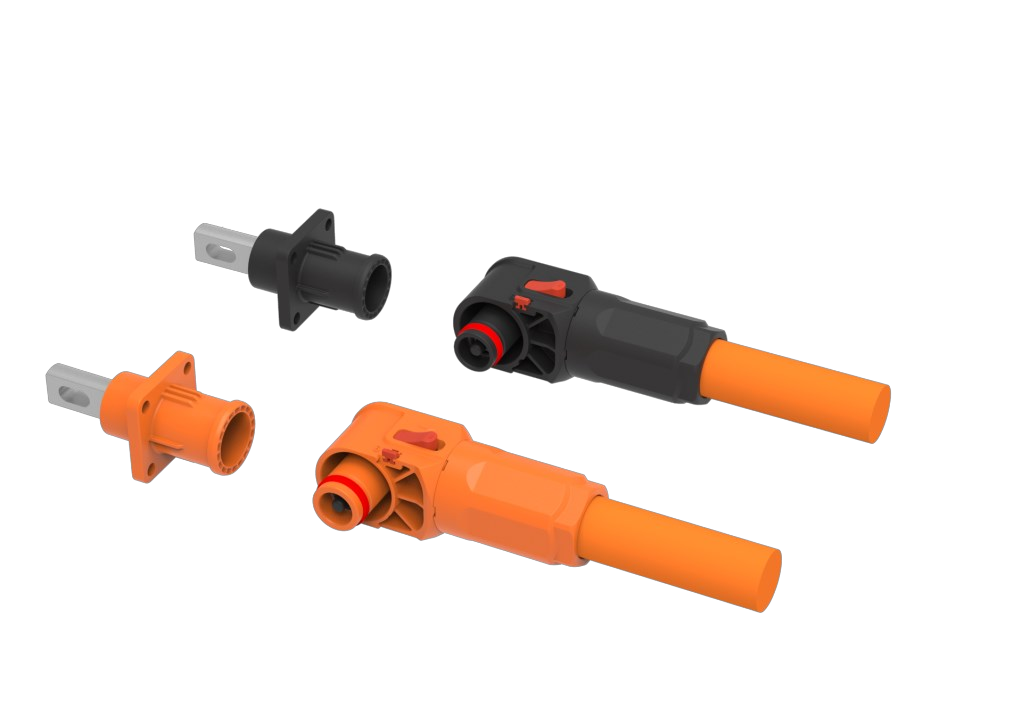

  • Color options available for input/output ends (orange or black).
  • One-piece molded PA66 housing ensures high insulation and easy installation.
  • Anti-misplug design with secondary locking mechanism for enhanced safety.
  • 360° rotatable after connection for flexible installation.
  • High protection rating up to IP67.
  • Low total installation cost and minimal maintenance effort.

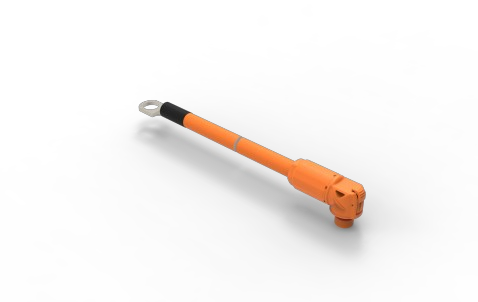

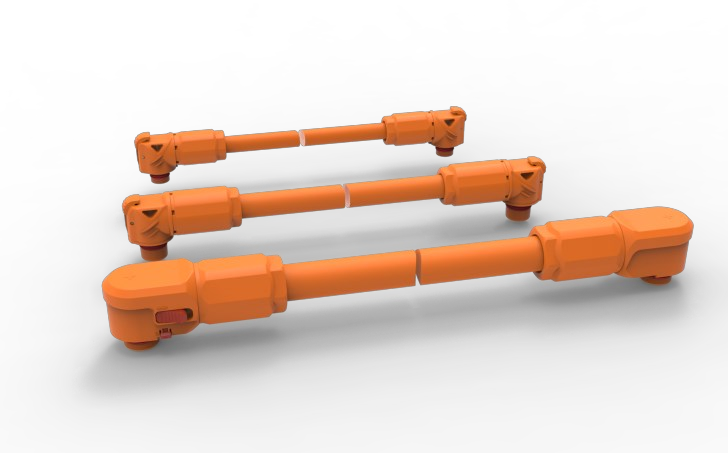

EES Harness Assembly

EES Harness Assemblies provide a ready-to-install solution for energy storage systems. Custom harnesses can be manufactured with specific lengths and terminations according to customer requirements, significantly reducing assembly time and cost while improving project efficiency.

Harness Features

  • Perfect crimping ensures strong and reliable connection points.
  • Excellent tensile strength and low temperature rise.
  • Available in wire sizes from 16–95 mm² (6 AWG – 4/0 AWG).
  • Rated current 80–350 A, rated voltage 1500 V DC.
  • Protection level IP67, suitable for harsh environments.
