EBC Series Battery Connector

Company Profile

DONGGUAN NOIMIA INDUSTRIAL CO., LTD. is a professional precision component manufacturing enterprise solely owned (or controlled) by a natural person, Specializing in the research, development, manufacturing, and sales of connector contact terminals, contact pins, female pin with torsion spring, copper bar, bushings, automotive hardware parts, medical equipment accessories, and power tool output shaft. It has developed an integrated industrial model that spans from product development and precision manufacturing to market sales.

Product Overview

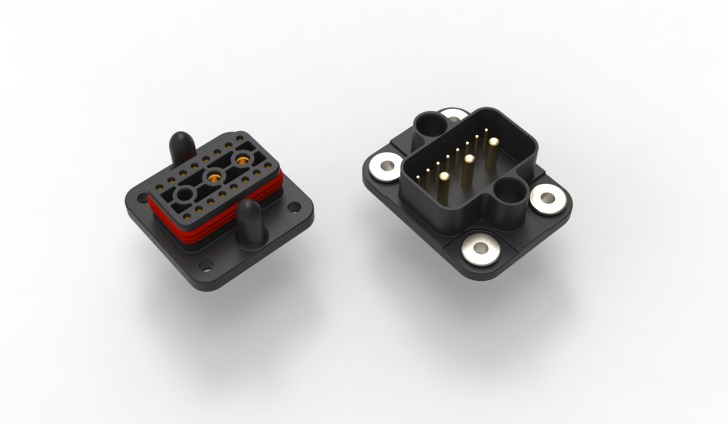

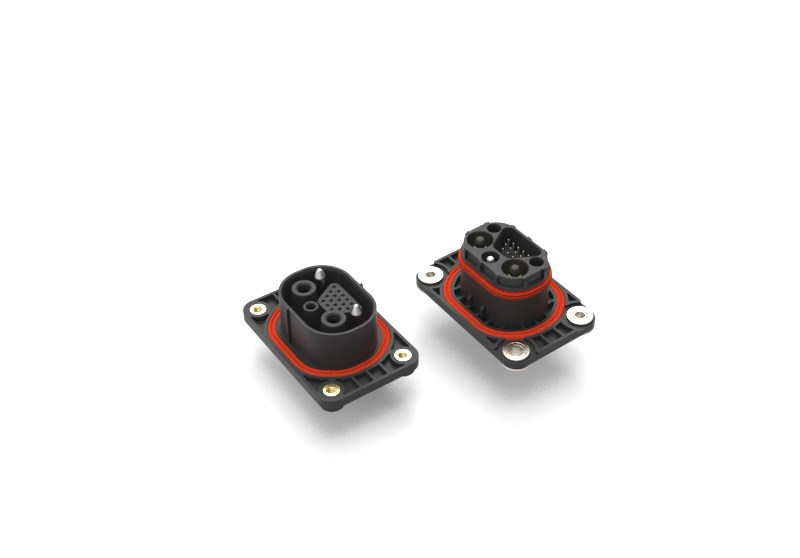

The EBC Series Battery Connector is developed specifically for energy storage systems and battery pack integration. It provides efficient power and signal transmission between modules and devices. The series covers multiple configurations, including 4+2+1+13 pins, 2+1+12 pins, 2+2+1+21 pins, 2+1+18 pins, and 2+8 pins, to meet diverse system requirements. EBC connectors feature modular design, excellent electrical performance, and high safety standards, making them ideal for home and commercial energy storage applications.

Key Features

• High current capacity: up to 350A (dual-group design).
• Multiple configurations available: 4+2+1+13, 2+1+12, 2+2+1+21, 2+1+18, 2+8 pins.
• Built-in anti-misplug and anti-electric shock design for safety.
• Supports floating and blind-mating structures (±1.5mm in X/Y directions).
• Optional low-voltage auxiliary and signal pins for flexible customization.
• Protection level up to IP67 when mated.
• High mechanical strength housing with UL94V-0 flame retardancy.
• Supports front or rear mounting, convenient for maintenance and wiring.

Technical Specifications
