Ｎoimia Corrosion-Resistant, High-Conductivity

Product Overview

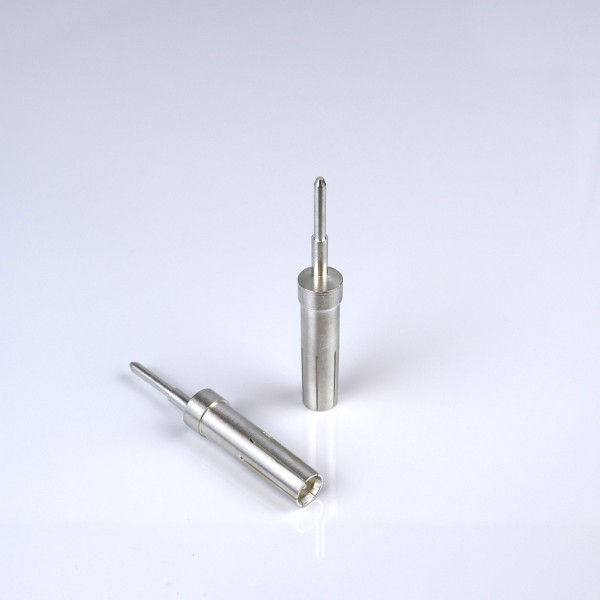

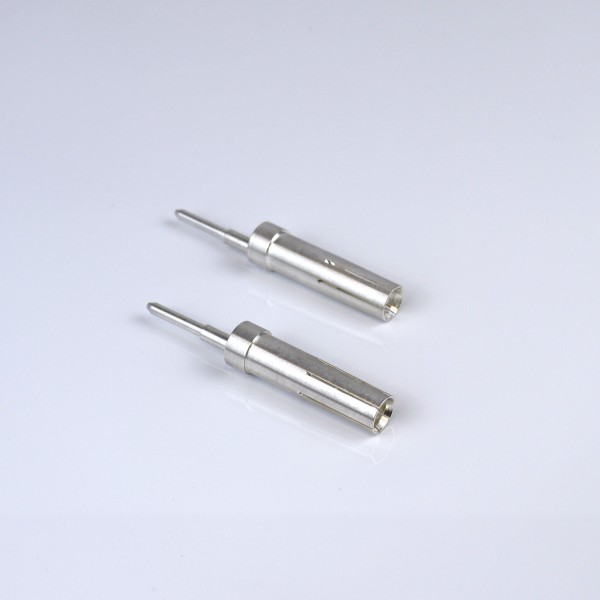

As a leading provider of high-precision connection technology solutions, Noimia Industrial Co., Ltd. proudly presents our Slotted Terminal Series—engineered to deliver exceptional performance, reliability, and durability for a wide range of high-end electrical connection scenarios. Leveraging advanced material science and precision manufacturing processes, our slotted terminals excel in handling high currents, reducing contact resistance, and withstanding frequent mating cycles, making them the ideal choice for new energy, industrial electronics, automotive, and medical equipment applications.

Feature and benefit

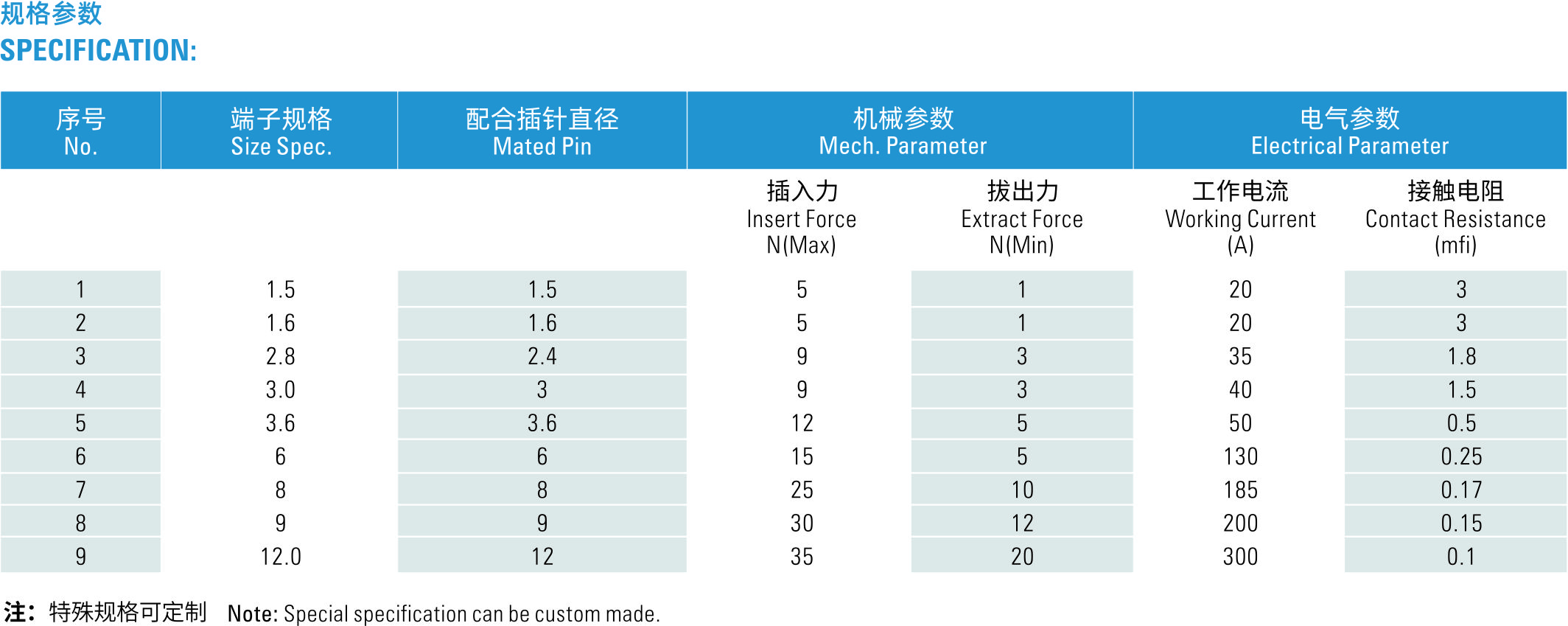

• Rated current: 5A-400A or more higher
• Contact resistance: 0.03-0.2mΩ
• Low insertion force
• Over 1000 times mating cycles
• Self-cleaning and salt-mud water testduring insertion and removal

Large rated current√

Low Voltage drop√

Lower insertion and removeal force√

Low contact resistance√

High reliability√

Vibration and impact resistance√

Over 10000 mating cycles√

Application

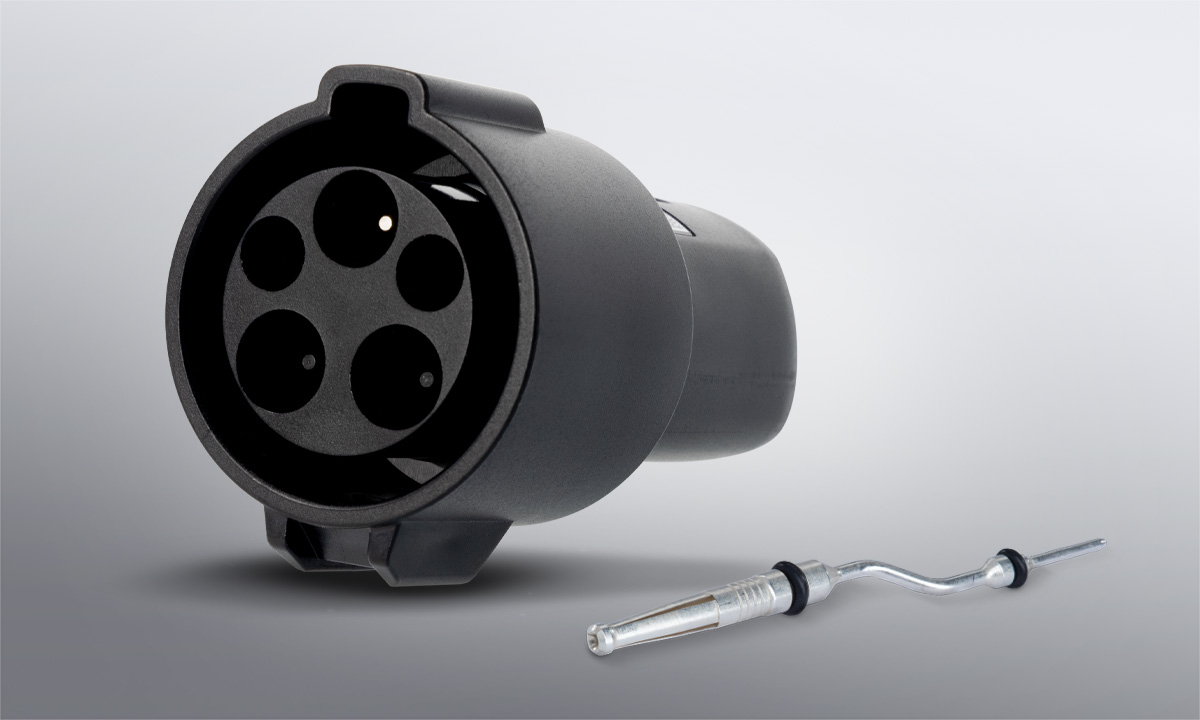

Noimia Pins are the perfect addition to all contact systems. The importance of pins is often underestimated and little attention is paid to them. However, the quality of the pin is crucial for a permanently reliable connection. The electrical performance and service life of a contact system are always determined by both contact partners. Only high-quality materials and surface coating technologies are therefore used for Noimia Pins
